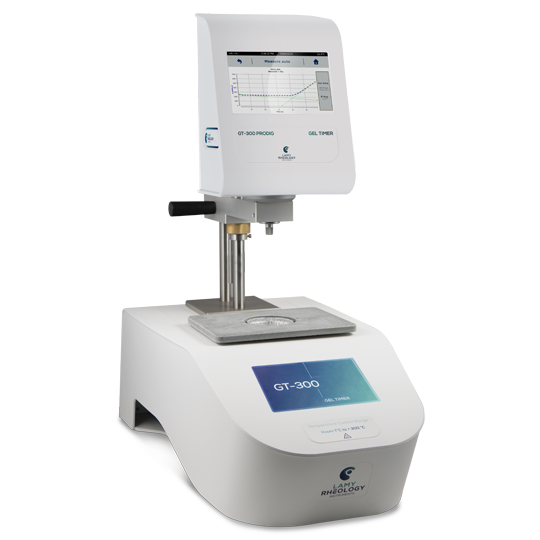

VISCOMETER
GT-300 PRODIG

Specifications

• Type of instrument :

  Rotating springless viscometer with 7’’ Touch screen

• Rotation speeds :

  Unlimited number of speeds between 0.3 and 1500 rpm

• Torque range :

  From 0.05 to 30 mNm

• Temperature :

  Equipped with a PT100 sensor which indicates temperatures between -50°C to +300°C

• Accuracy :

  +/- 1 % of the full scale

• Repeatability :

  +/- 0,2 %

• Display :

  Viscosity (cP/Poises or mPa.s / Pa.s)-Speed – Shear rate – Torque (%-mNm) - Shear stress - Time– Temperature

• Compatible accessories :

  Barcode reader with stand and cable
  Touch screen protector
  Zebra printer
  Breakable Thermocouple 5 m type K (Complete kit with
  connector)
  100 Disposable cups aluminium
  100 Disposable steel hooks low volume
  100 Disposable stainless steel hooks
  RheoTex software
  Protection cover

• Security and confidentiality :

  An «operator» function allows you to enter a username for your instrument. This user must then be identified using a 4-digit code.
  There is also a protected mode that locks your measurement conditions.

• Languages :

  French/English/Turkish/German/Russian/Italian/Spanish

• Compatible measuring systems :

  Disposable cup (aluminium) (by 100) Ref. 700011


  Disposable hook (stainless steel) (Vol. 50-80mL) (by 100) Ref. 700010


  Disposable hook (steel) (Vol. 35-50mL) (by 100) Ref. 700040

• Supply voltage :

  90-240 VAC 50/60 Hz

• PC connections :

  RS232 Port, USB and Ethernet

• Printer connection :

  USB Host Port -
  Compatible PCL/5

• Dimensions and weight :

  GT300 PRODIG without temperature unit (N129000): D320 x H650 x W200 mm. Weight: 14 kg

  GT300 PRODIG with temperature unit: D610 x H700 x W340 mm. Weight: 22 kg
